Sign members into apps via OAuth 2.0

Memberful supports the OAuth 2.0 protocol for authentication, which means that you can use Memberful as the sign-in mechanism for your custom applications, including both web and mobile apps.

Members sign in to your app or website via Memberful's sign-in process. Once we've confirmed they're signed in, your app can pull the member's data from our API.

In this help doc:

• OAuth Process Overview
• Prepare your app
• Add a Custom Application
• Generate the necessary codes
• Request an authorization code
• Request an access token
• Query member data from our API
• Refresh the access token
• OAuth Flow Reference Diagram
• Code Examples
• Automatic sign in and sign out

OAuth Process Overview

This article will walk you through the process of setting up OAuth for your app, one step at a time.

We've also included a reference diagram of the OAuth flow and well-documented code examples at the end of this help doc.

Here's a high-level overview of the process we'll follow to set this up:

The big-picture objective of the OAuth flow is to obtain an access token that can be used to access a member's data, including their name, email, and subscriptions. To obtain an access token, your application will follow the OAuth 2.0 Authorization Code flow.

Over the following sections, we'll go through this process one step at a time.

Prepare your app

Before we can set up OAuth with Memberful, your app needs to be able to initiate the OAuth flow and later receive the necessary codes, so we'll need to set up a route and an endpoint in your app.

Sign-in route

Your app needs to initiate the sign-in process, so you'll need to set up a "sign-in" route/view that will start the flow. For example, there could be a "Sign in" button in your app that, when clicked, will navigate to this route.

We'll go over the specifics of what this route needs to do in a future section, but for now, just create that route and make sure that your users can navigate to it from within your app.

Callback endpoint

Over the course of the OAuth flow, members will sign in via Memberful, and then Memberful will need to redirect the user back to your app. This is where the "callback" endpoint comes in.

The callback endpoint is where Memberful will redirect the user to after they've signed in, and it's where your app will receive some codes as query string parameters that it can use to complete the process.

We'll go over the specifics of what this endpoint needs to do in a future section, but for now, just create the endpoint in your app and make sure that Memberful (running on a browser window) can navigate to it, and that your app can extract the query string parameters from the URI.

If you're creating a mobile app, we'll go over how to navigate from a browser back to the app in the next section.

Add a Custom Application

Now we'll add a custom application to your Memberful account. This will help Memberful determine how to execute the OAuth flow for your app, and it will generate some necessary codes for your app to use.

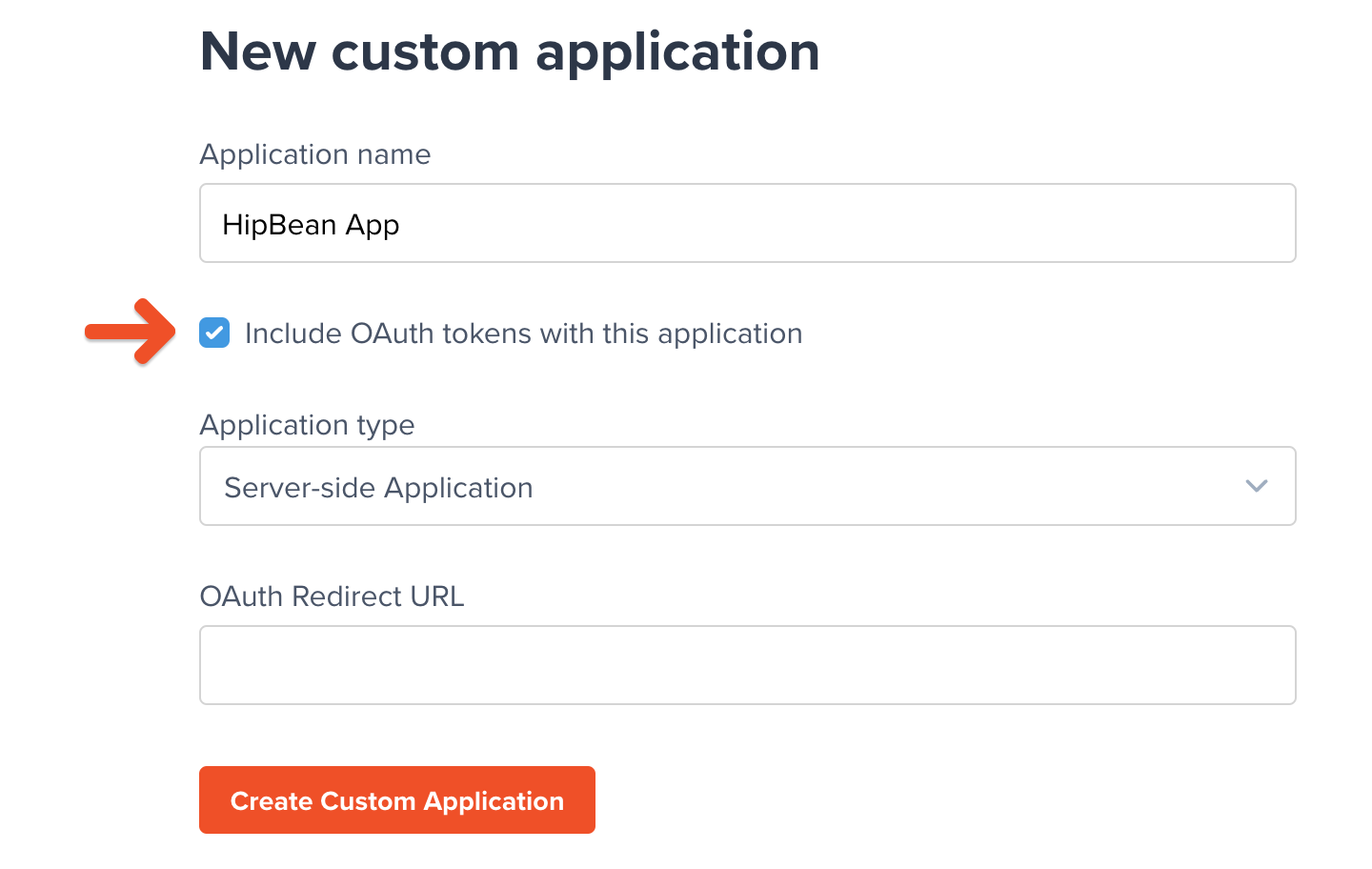

Navigate to Settings → Custom applications → Add a new Custom Application. Enter a name for the app (the name is just for your own reference) and check the box next to Include OAuth tokens with this application.

You'll be able to choose from one of three application types: Server-side, Single-page, and Mobile.

Server-side Application

The setup process for Server-side Apps (SSA) is simpler than for client-side apps (Single Page or Mobile Applications), as you'll be given a client_secret code instead of having to deal with the more complex Proof Key of Code Exchange (PKCE) process (more on that below).

However, this should only be used for 100% server-side applications because if the client_secret ends up in client-side code it will be compromised, and bad actors could use it to impersonate your application and access member data.

Single Page Application

Single Page applications can't secure a client secret, so one is not generated or required.

These applications must provide Proof Key of Code Exchange (PKCE) parameters described below.

Mobile Application

Like single page applications, mobile and native apps do not use a client secret and must provide Proof Key of Code Exchange (PKCE) parameters.

What makes mobile applications unique is that they may use a private URI scheme or claimed "https" scheme as the redirect URI.

The OAuth standard best practice recommends that private URI schemes match a domain you control, in reverse, such as com.example.app if your domain is app.example.com.

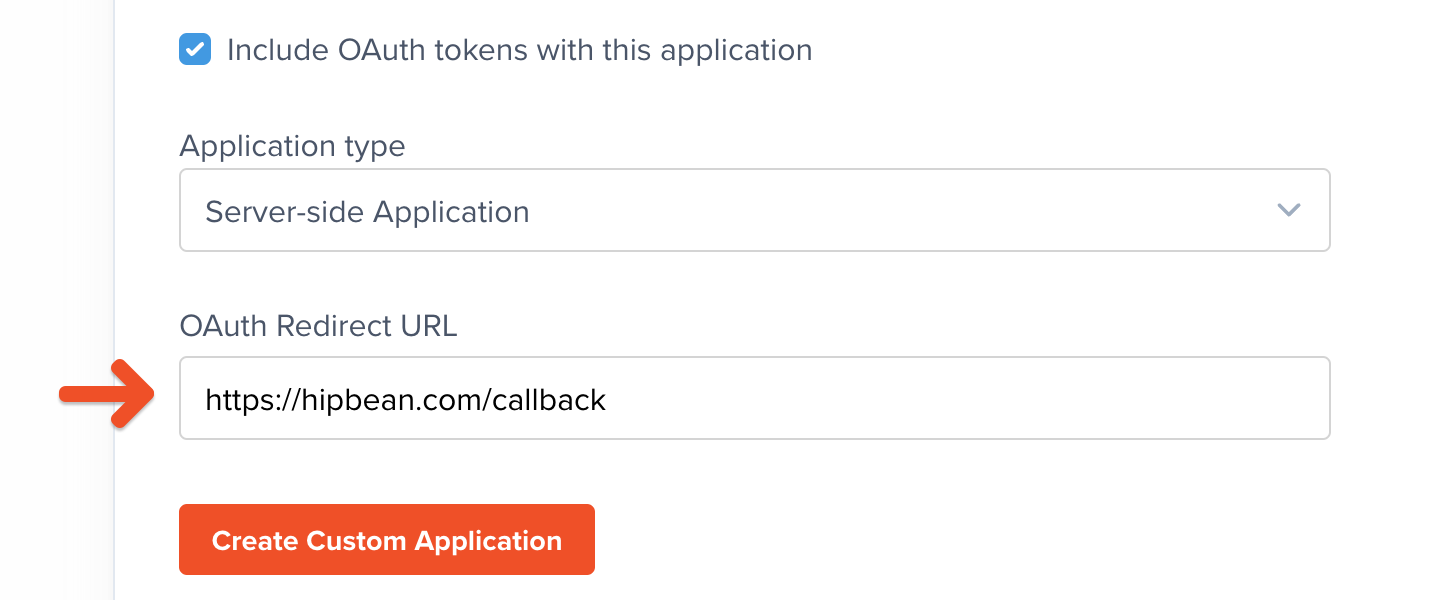

OAuth Redirect URL

Once you've selected an application type, populate the OAuth Redirect URL field with the URL/URI of the "callback" endpoint you created earlier in your app. When Memberful is running on a browser, it should be able to navigate to this address and have your app open up on that endpoint to continue the process.

Click Create Custom Application to save your settings.

Generate the necessary codes

It's time to implement the functionaility of the "sign-in" route we created earlier. This route will generate the necessary codes and then open up a browser window to start the OAuth flow.

Generate the State

The first thing we'll need to do is generate a state code. This code will be used to verify that the user is coming from Memberful and not from a malicious third party.

The state code can be any random string. There is no specific length requirement, but it's best to make it somewhat long and to use a cryptographically secure random string generator to ensure that it's not guessable.

Generate the Code Verifier and Code Challenge (PKCE only)

For single-page and mobile applications, we'll need to generate a code_verifier and code_challenge code, which are part of the Proof Key of Code Exchange (PKCE) process.

The code verifier must be a secure random string between 43 and 128 characters long. If your app can generate a SHA256 hash, the code challenge should be a Base64-URL encoded SHA256 hash of the code verifier. If not, the code verifier may be used as the challenge (although we highly recommend SHA256 if possible).

Example pseudo code for generating code challenge:

code_verifier  = generate_random_string(128)
sha256_hash    = sha256(code_verifier)
code_challenge = base64url_encode(sha256_hash)

Your application must store the code verifier and the state to use them in later stages of the process.

Request an authorization code

Now that we have the necessary codes, we can request an authorization code from Memberful.

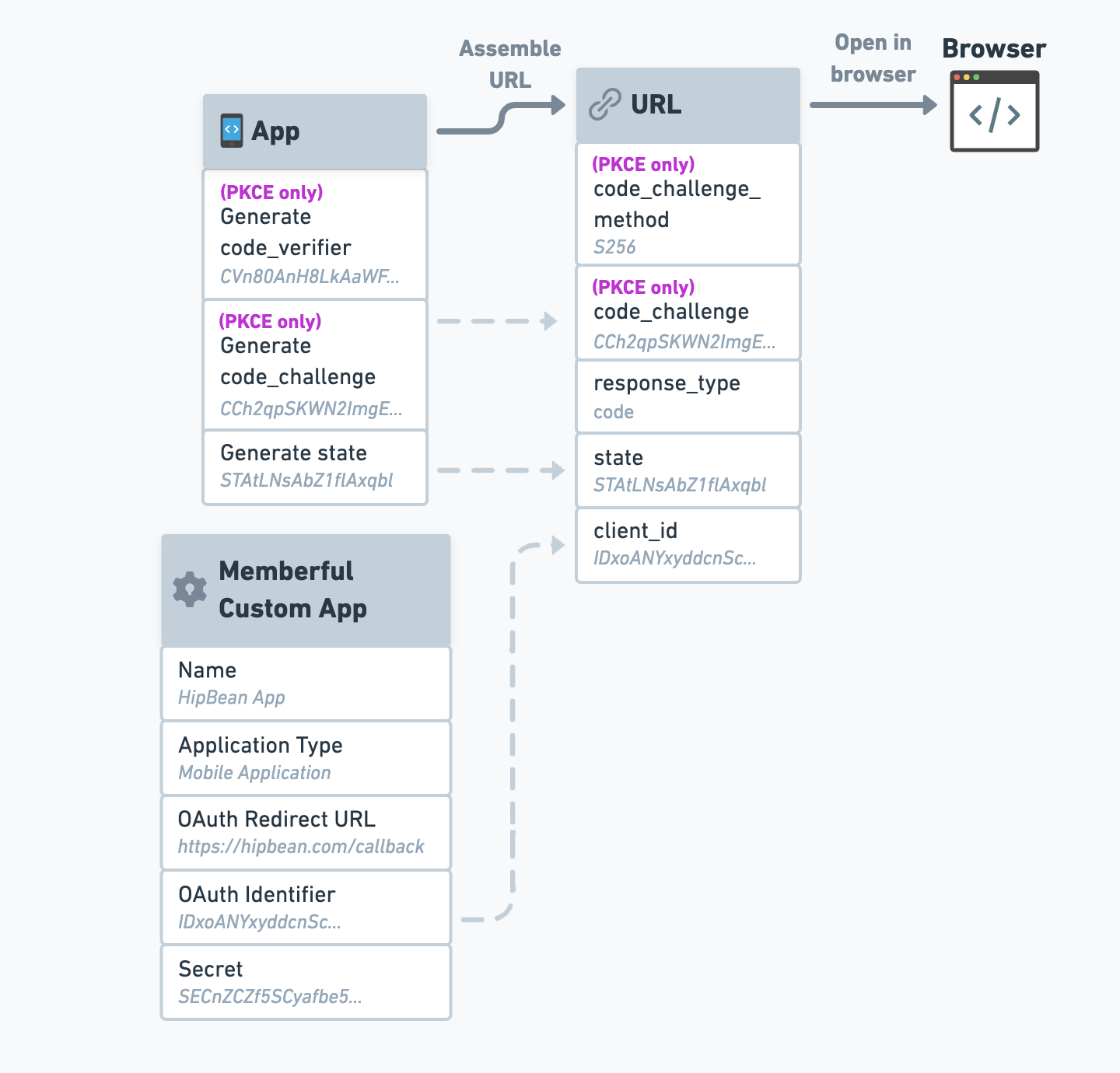

We'll start by assembling a URL with all the required parameters, and then we'll open it in the browser.

We'll start with the base of the URL, which is your Memberful account's OAuth endpoint:

https://YOURSITE.memberful.com/oauth

Next, we'll add the following parameters to that URL:

• response_type - This exact string: "code".
• state - The state code we generated earlier.
• client_id - Your custom app's OAuth Identifier, found in the Memberful dashboard (Settings → Custom applications).
• code_challenge (PKCE only) - The code challenge we generated earlier.
• code_challenge_method (PKCE only) - The string "S256" if SHA256 was used (recommended), or "plain" if the code verifier was used directly.

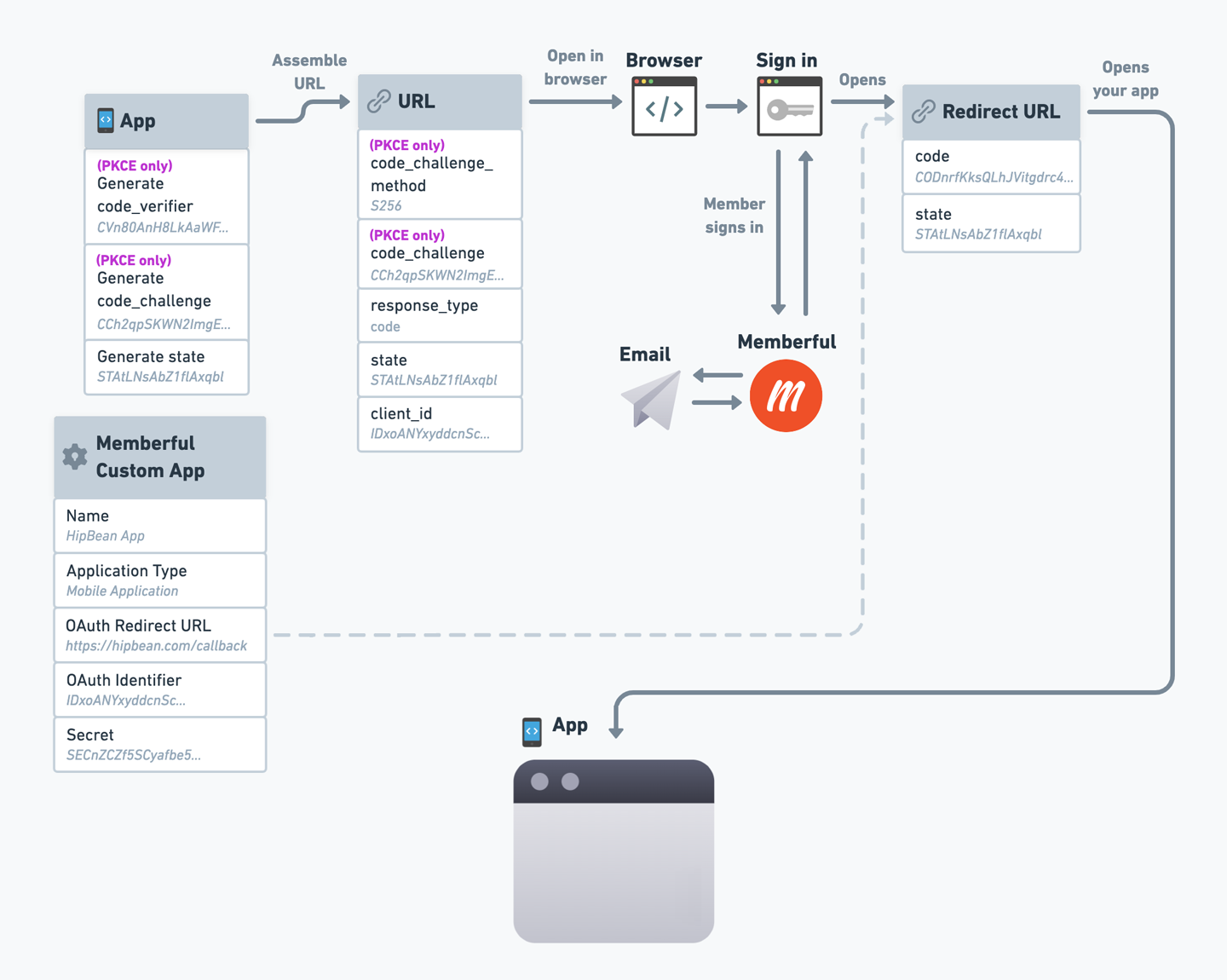

Memberful will prompt the member to enter their email in the browser to sign in. Once they’re signed in, Memberful will call the redirect URL provided when you created the custom application, which should point to the "callback" endpoint you created earlier in your app (unless you've set up a custom sign in / out app).

The redirect URL will also include the state code we generated earlier, and a new code parameter, which stands for "authorization code". For example:

https://example.com/oauth_callback_endpoint?code=[CODE]&state=[STATE]

Request an access token

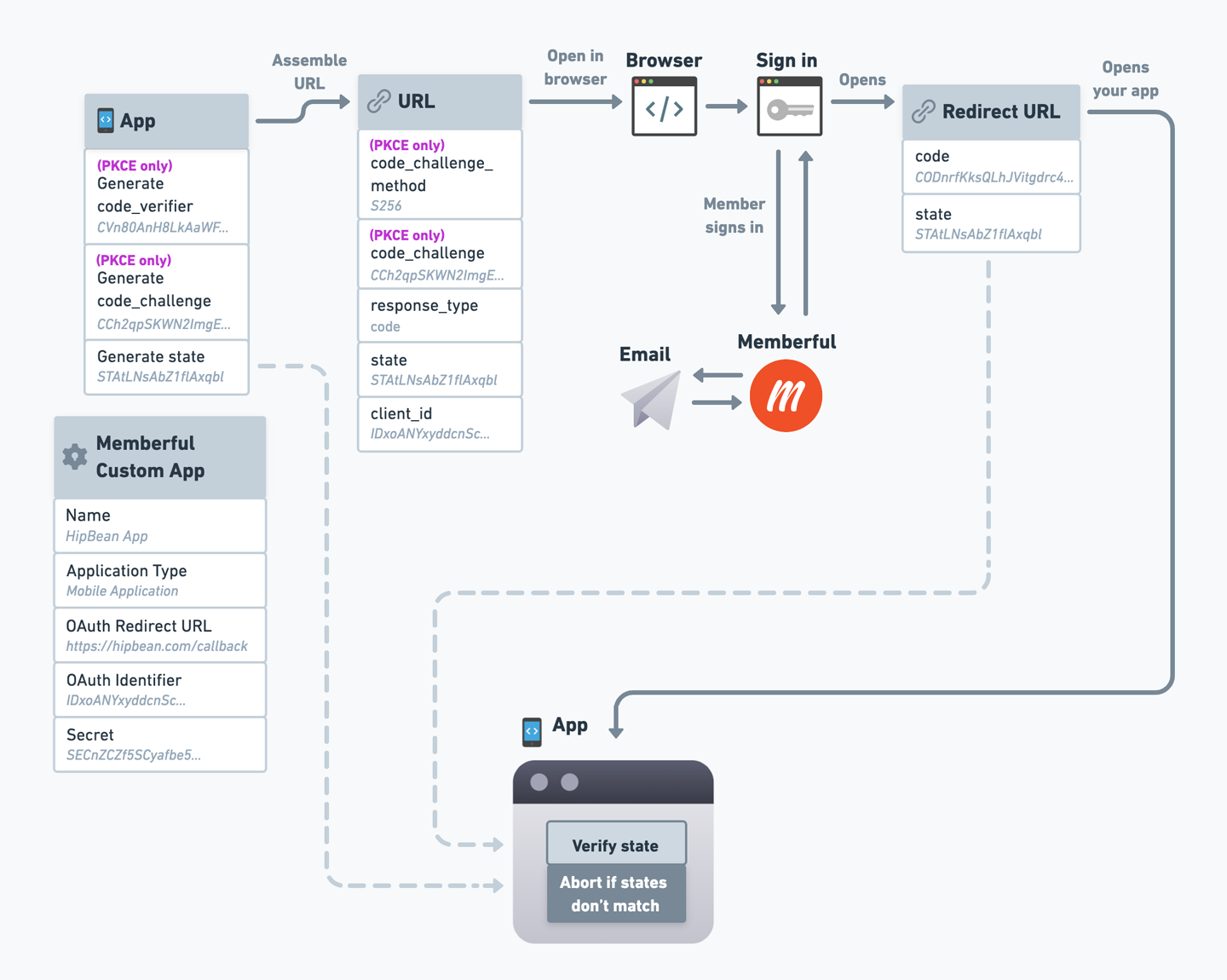

When your app receives the redirect, it must extract the code and state parameters from the URI and verify that the state parameter matches the state you generated earlier. If the states don't match, abandon the process and display an error message, as this could be a malicious third party trying to steal the member's access token.

Once the state has been verified, your app can request an access token from Memberful.

To obtain an access token, send a POST request to:

https://YOURSITE.memberful.com/oauth/token

The request must include these parameters:

• client_id - Your custom app's client ID.
• grant_type - This exact string: "authorization_code".
• code - The authorization code you just received as a parameter in the redirect.
• code_verifier (PKCE only) - The code verifier you generated earlier.
• client_secret (SSA only) - Your custom app's client secret.

In response, Memberful will return an access token and a few other data points. Here's an example response:

{
  "access_token": "4VMouHo65fi2QTauJeXfWbbz",
  "token_type": "bearer",
  "expires_in": 900,
  "refresh_token": "pwraAdUfmr46JhGt2aJHcuif"
}

Query member data from our API

Once your application has an access token, it can request data from Memberful's GraphQL API to retrieve information about the member.

Keep in mind that this should be a GET Request, not POST.

Endpoint URL:

https://YOURSITE.memberful.com/api/graphql/member?query=YOUR_GRAPHQL_QUERY

Authorization header:

Authorization: Bearer <your_access_token>

This GraphQL endpoint has a single field called currentMember with GraphQL type Member. You have to specify what information you need in the query parameter.

Example query:

{
  currentMember {
    address {
      city
      street
      postalCode
      country
    }
    creditCard {
      expMonth
      expYear
    }
    downloads {
      id
      name
    }
    email
    fullName
    id
    phoneNumber
    subscriptions {
      active
      expiresAt
      plan {
        id
        name
      }
    }
    unrestrictedAccess
  }
}

Example response:

{
  "data": {
    "currentMember": {
      "address": {
        "city": null,
        "street": null,
        "postalCode": null,
        "country": null
      },
      "creditCard": {
        "expMonth": 10,
        "expYear": 2020
      },
      "downloads": [
        {
          "id": "1",
          "name": "A download"
        }
      ],
      "email": "[email protected]",
      "fullName": "John Doe",
      "id": "1",
      "phoneNumber": null,
      "subscriptions": [
        {
          "active": true,
          "expiresAt": 1528625190,
          "plan": {
            "id": "1",
            "name": "Monthly"
          }
        }
      ],
      "unrestrictedAccess": false
    }
  }
}

See the API explorer to learn more about the available GraphQL types.

Refresh the access token

Access tokens are valid for 15 minutes. You can use a refresh token (provided with each access token) to get a new access token. Refresh tokens are valid for one year.

To obtain a new access token, send a POST request to:

https://YOURSITE.memberful.com/oauth/token

The request must include these parameters:

• grant_type - This exact string: "refresh_token".
• client_id - Your custom app's client ID.
• refresh_token - The refresh token received with an access token.
• client_secret (SSA only) - Your custom app's client secret.

In response, Memberful will return an access token.

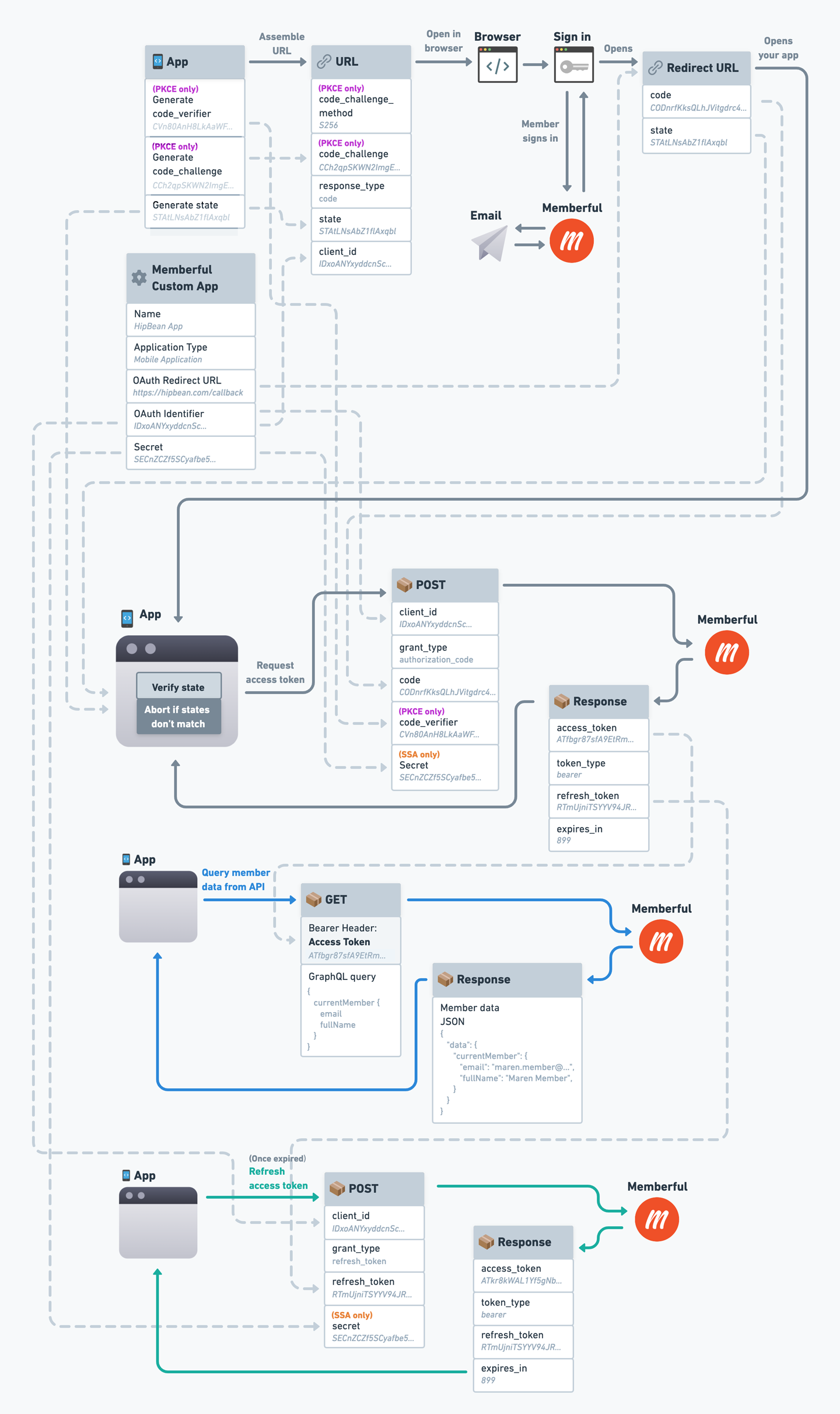

OAuth Flow Reference Diagram

We've created a reference diagram to help you visualize the entire OAuth flow, including where each parameter comes from. Click the image to open it in full size.

Code Examples

We've created a few code examples to help you get started with OAuth. These examples are written in NodeJS and Express, but you can use them as a reference for any language or framework.

• Server-side application (SSA).
• Server-side application (SSA) using an Auth library.
• Client-side application (PKCE).
• Client-side application (PKCE) using an Auth library.

Automatic sign in and sign out

Sign in

You can set your OAuth application as your login application (Settings → Custom applications → Automatic login) and we will automatically sign members into your application any time they sign in to Memberful.

This option will only show up if you've configured a custom app with OAuth and you aren't using our WordPress plugin, since WordPress becomes your login application automatically when you've enabled the plugin.

If you've set up automatic login for a custom app (let's call this App A) and a sign-in is initiated through a different OAuth application (we'll call this App B), Memberful will ignore App B's Redirect URL, and instead redirect to App A's Redirect URL, because it's the default login application. However, Memberful will append a redirect_to query parameter to the URL so that App A can redirect to the desired URL after signing in.

Sign out

When a member signs out from Memberful and you've set up an application for automatic sign in / out as described above, we automatically redirect the member to that application's redirect URL with an additional parameter of action set to logout. Your application can use this to detect the logout action, then sign the member out and redirect them back to the sign-in form or some other page of your choosing.
